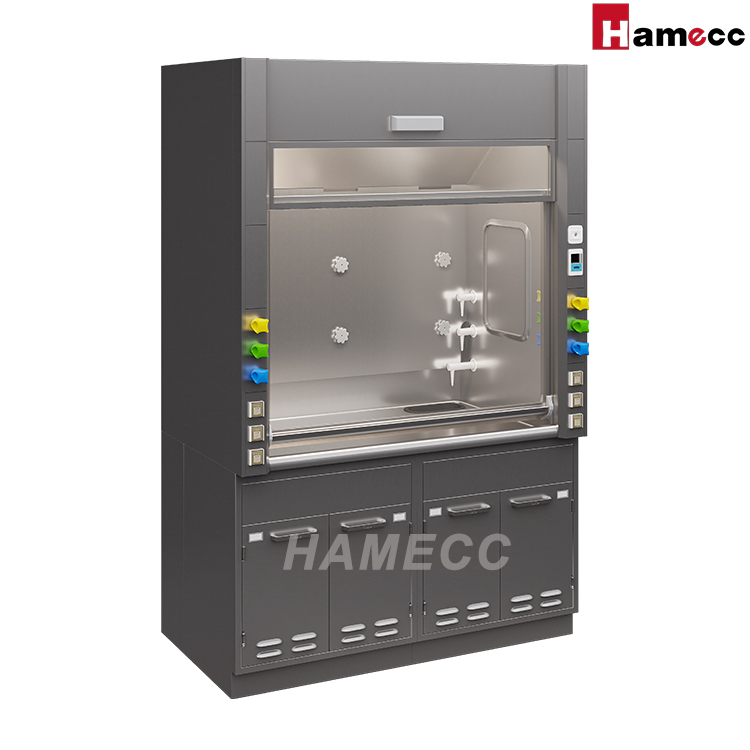

The Stainless Steel Fume Hood SS Series is designed for laboratory environments requiring a stainless steel construction for the work area and cabinet. Manufactured in accordance with ASHRAE 110 standard specifications, it features an optimized airflow distribution system, full-surface exhaust extraction, and ergonomic operation. Available in 304 or 316 stainless steel, the SS Series offers durable construction and flexible laboratory utility integration for a wide range of laboratory applications.
Название компании :
HAMECC (Shanghai) Lab Solutions Co., Ltd.Brand :
HAMECCLighting :
LEDx2/LEDx2/LEDx2Extract manifold Diameter [mm] :
250/250/315Inner Height [mm] :
1180Inner width [mm] :
956/1256/1556Height [mm] :
2350Depth [mm] :
880Width [mm] :
1200/1500/1800Model :
[SS SERIES] SS-W1200/SS-W1500/SS-W1800
Вытяжной шкаф
Лабораторный рабочий стол
Работа с клиентами
Шкаф безопасности
Таблица баланса
Высокий лабораторный шкаф
Лабораторный шкафчик
Стальная лабораторная стойка
Ящик для пропуска
Биологический защитный бокс А2
Столешница
Лабораторное оборудование
The Stainless Steel Fume Hood SS Series is engineered to provide effective containment and exhaust of hazardous laboratory fumes while offering the durability of stainless steel construction. Designed, manufactured, and installed in accordance with ASHRAE 110 standard specifications, its performance meets ASHRAE 110 testing requirements.
The SS Series incorporates an optimized airflow distribution system and full-surface exhaust extraction to support effective airflow throughout the working chamber. Available in 304 or 316 stainless steel, it is suitable for laboratories requiring stainless steel construction for the main structure, worktop, and interior lining.
The SS Series draws laboratory air through the sash opening into the working chamber, where hazardous fumes are captured by the optimized airflow system. The internal airflow distribution and upper exhaust system help direct contaminants toward the exhaust manifold, while laminar suction reduces the residence time of harmful gases before discharge through the laboratory exhaust system.
The main structure, worktop, and lining are available in 304 or 316 stainless steel.
The internal airflow distribution system and upper exhaust design help improve airflow throughout the working chamber.
Laminar suction helps reduce the average residence time of harmful gases inside the fume hood.
The increased gas collecting hood height contributes to enhanced exhaust efficiency.
Large inspection panels, removable fittings, and hollow front columns simplify maintenance.
The aluminum alloy sash frame, ergonomic handle, and smooth timing belt mechanism provide comfortable daily operation.
| Item | Specification |
|---|---|
| Product Series | SS Series |
| Models | SS-W1200 / SS-W1500 / SS-W1800 |
| Width (mm) | 1200 / 1500 / 1800 |
| Depth (mm) | 880 |
| Height (mm) | 2350 |
| Inner Width (mm) | 956 / 1256 / 1556 |
| Inner Depth (mm) | 740 |
| Inner Height (mm) | 1180 |
| Extract Manifold Diameter (mm) | 250 / 250 / 315 |
| Lighting | LED ×2 / LED ×2 / LED ×2 |
| Component | Material |
|---|---|
| Main Structure | Stainless Steel 304 / 316 |
| Worktop | Stainless Steel 304 / 316 |
| Lining | Stainless Steel 304 / 316 |
| Item | Configuration |
|---|---|
| Electrical Supply | Power outlets on the exterior in the service panel |
| Water & Gas Supply | Optional air valve, water valve, PP cup sink |
| Under Cabinet | Standard steel cabinet, safety cabinet, acid cabinet, etc. |
| Model | Widthmm |
|---|---|
| SS-W1200 | 1200 mm |
| SS-W1500 | 1500 mm |
| SS-W1800 | 1800 |
