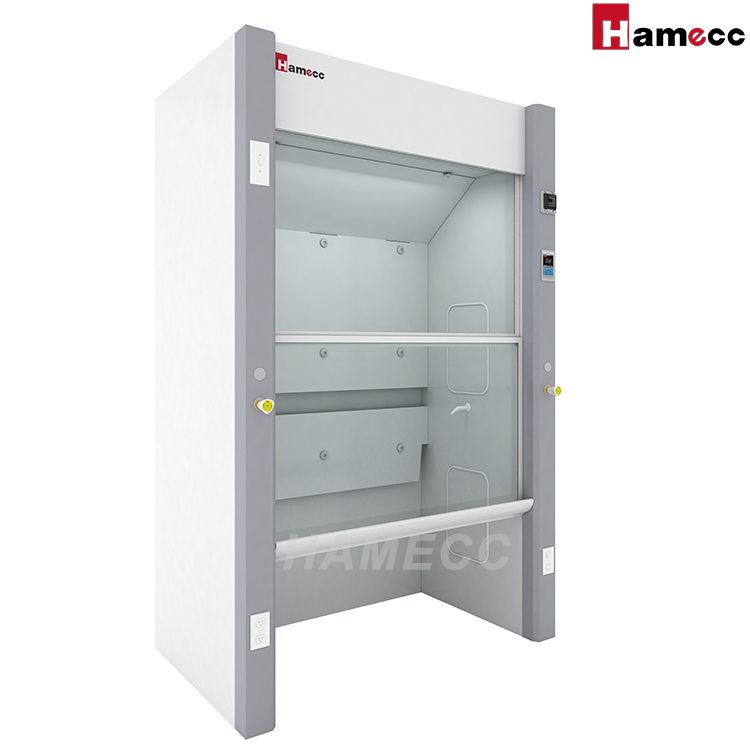

The Walk-In Fume Hood WK Series is designed for laboratory applications requiring the safe handling of large or floor-standing equipment. Featuring optimized contaminant containment, full-surface exhaust extraction, and an ergonomic design, the WK Series provides efficient airflow performance while accommodating oversized laboratory apparatus. Its durable construction, flexible utility connections, and optional accessories make it suitable for research, pharmaceutical, chemical, and industrial laboratories.
Название компании :
HAMECC (Shanghai) Lab Solutions Co., Ltd.Brand :
HAMECCModel :
[WK SERIES] WK-W1200/WK-W1500/WK-W1800Width [mm] :
1200/1500/1800Depth [mm] :
880Height [mm] :
2350Inner width [mm] :
956/1256/1556Inner Depth [mm] :
740Inner Height [mm] :
approx.2000Extract manifold Diameter [mm] :
250/250/315Lighting :
LEDx2/LEDx2/LEDx2
Вытяжной шкаф
Лабораторный рабочий стол
Работа с клиентами
Шкаф безопасности
Таблица баланса
Высокий лабораторный шкаф
Лабораторный шкафчик
Стальная лабораторная стойка
Ящик для пропуска
Биологический защитный бокс А2
Столешница
Лабораторное оборудование
The Walk-In Fume Hood WK Series is engineered to provide effective containment and exhaust of hazardous fumes while accommodating large laboratory instruments and floor-standing equipment. Designed with optimized airflow performance and ergonomic operation, the WK Series offers a practical solution for laboratories that require additional working height and flexible equipment access.
The exhaust system is designed to maintain effective contaminant containment while supporting low exhaust airflow rates. An optimized sash system, full-surface worktop extraction, and durable construction contribute to reliable laboratory ventilation for demanding applications.
The WK Series continuously draws room air through the front opening into the working chamber, capturing hazardous fumes and airborne contaminants generated during laboratory operations. As the sash opening height changes, the exhaust airflow adjusts accordingly to maintain a face velocity of 0.5 m/s, helping provide effective contaminant containment. Captured air is then directed through the exhaust manifold for discharge via the laboratory ventilation system.
Provides additional vertical clearance for large laboratory apparatus and floor-standing equipment.
Designed to maintain effective contaminant containment while operating with relatively low exhaust airflow rates.
The exhaust airflow automatically corresponds to sash opening changes to achieve a face velocity of 0.5 m/s.
Large inspection panels and easily removable fittings simplify routine inspection and servicing.
Features a lightweight aluminum alloy sash frame, ergonomic handle, and quiet timing belt mechanism for comfortable daily use.
Supports multiple utility connections and optional accessories for various laboratory layouts.
| Item | Specification |
|---|---|
| Product Series | WK Series |
| Models | WK-W1200 / WK-W1500 / WK-W1800 |
| Width (mm) | 1200 / 1500 / 1800 |
| Depth (mm) | 880 |
| Height (mm) | 2350 |
| Inner Width (mm) | 956 / 1256 / 1556 |
| Inner Depth (mm) | 740 |
| Inner Height (mm) | Approx. 2000 |
| Extract Manifold Diameter (mm) | 250 / 250 / 315 |
| Lighting | LED ×2 / LED ×2 / LED ×2 |
| Component | Material |
|---|---|
| Main Structure | Cold Rolled Steel with Epoxy Powder Coating |
| Lining | Compact Panel, Phenolic Resin, Ceramic, Fiberglass |
| Item | Configuration |
|---|---|
| Electrical Supply | Power outlets on the exterior in the service panel |
| Water & Gas Supply | Optional air valve, water valve, PP cup sink |
| Model | Width |
|---|---|
| WK-W1200 | 1200 mm |
| WK-W1500 | 1500 mm |
| WK-W1800 | 1800 mm |
