DRP Series Hydraulic Coupling Roots Pumps: Reliable Vacuum Boosting for Industrial Applications

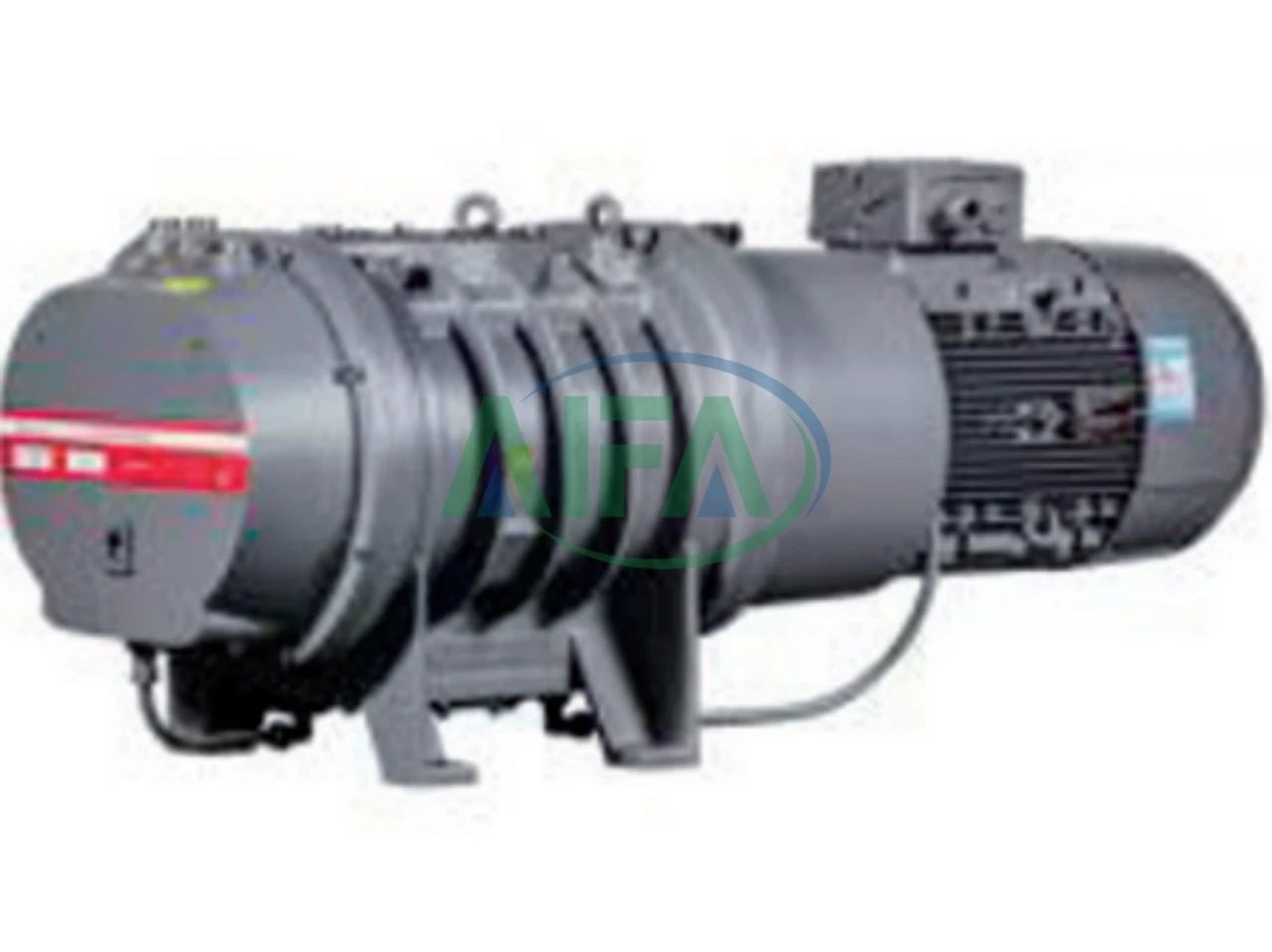

AiFatek’s DRP series hydraulic coupling Roots pumps are high-performance mechanical boosters built on classic Roots vacuum principles, delivering high pumping speed across the 1 Pa to 1000 mbar pressure range. As a robust boosting solution for industrial vacuum systems, the series stands out for its innovative hydraulic drive technology and reliable long-term operation.

Unlike conventional Roots pumps that require complex staged startup procedures, AiFatek’s hydraulic coupling design enables direct startup under atmospheric pressure or high differential pressure, and supports fully synchronous start-stop operation with the primary pump. The pump automatically adjusts its rotational speed to prevent overload and overheating, and triggers instant deceleration protection when foreign objects enter the chamber or pressure fluctuates sharply, resulting in an extremely low failure rate.

This integrated hydraulic structure eliminates the need for bypass piping, auxiliary valves or external frequency converters, greatly simplifying system configuration, cutting installation costs and easing daily operation. The pump runs smoothly with minimal vibration and low noise, and adopts a modular structure for straightforward maintenance and reduced downtime.

Covering pumping speeds from 250 m³/h to 5000 m³/h with an ultimate vacuum of 0.1 Pa, the DRP series adapts to vacuum systems of all scales. When paired with oil-free dry primary pumps, it forms a fully oil-free vacuum system, elevating overall pumping speed and vacuum level while avoiding direct exposure to high-concentration corrosive media for extended service life. It is widely applied in pharmaceuticals, chemical engineering, electronics, metallurgy, aerospace and nuclear industries.

Contact our technical team today to share your system requirements and receive a customized vacuum pump selection solution.
