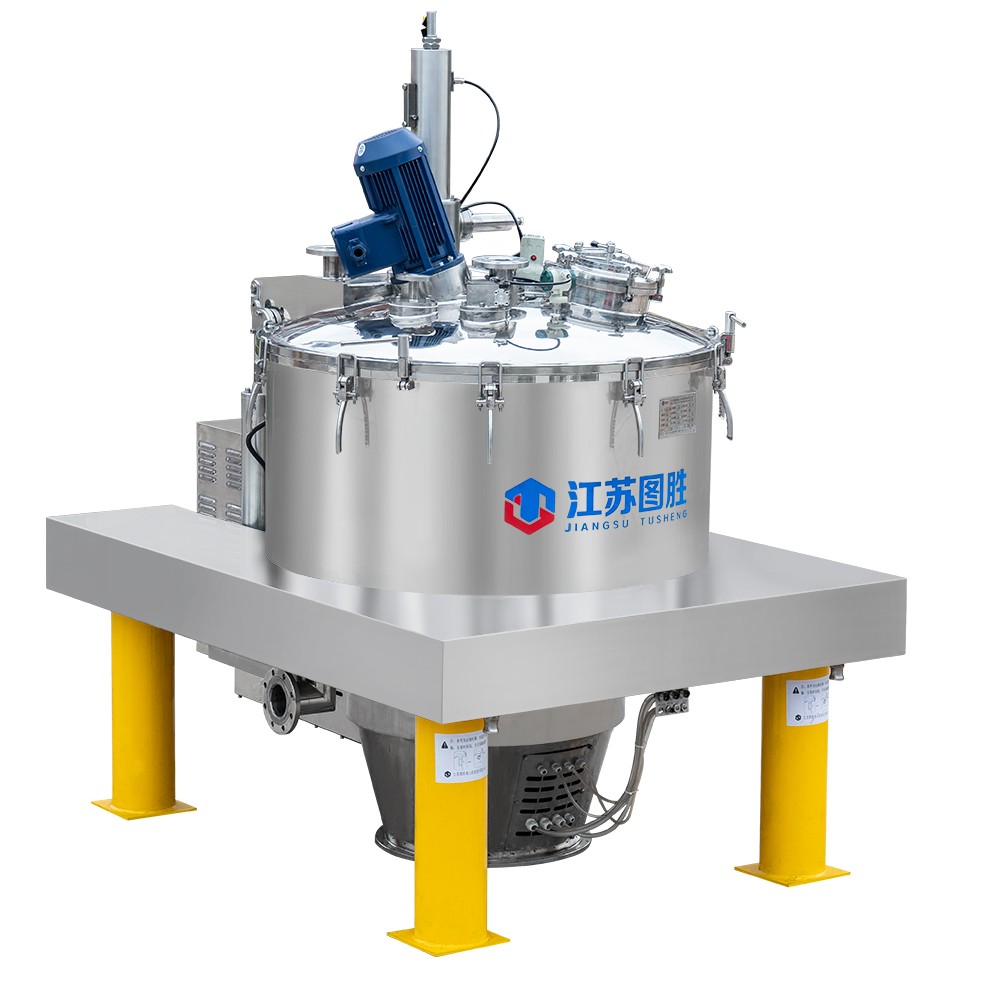

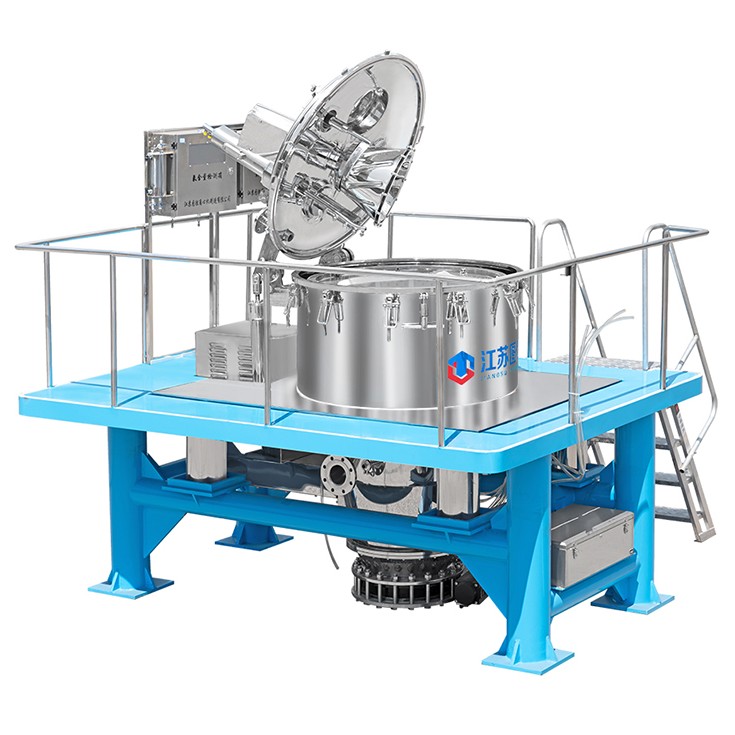

PGD Bag-shaking bottom discharge scraper centrOn the basis of maintaining the main functions of LGZ series products such as solid-liquid separation scraper discharging, PGD series bagging scraper lower discharging centrifuge has added the function of removing residual cake layer by bagging, and the removal rate can reach more than 99%. The cross-mixing batches of product separation between different batches were avoided, and the effect of residual cake layer on the filtration rate was solved. It is mainly used in the solid-liquid separation process of pharmaceutical, chemical, new energy, food and other industries.ifuges
Название компании :
JiangsuTusheng Centrifuge Manufacturing CO.,LTD.Brand :
Tusheng
Категории продуктовThe company has been committed to the R&D, production and sales of centrifuges, boasting rich experience in the design and manufacturing of separation equipment. Its products have obtained ISO 9001:2015 Quality Management System Certification, ISO 14001:2015 Environmental Management System Certification, and ISO 45001 Occupational Health and Safety Management System Certification. The various centrifuges produced are widely used in chemical industry, pharmaceutical industry, food industry, environmental protection, new energy, salt production and other fields. In 2018, the company introduced high-end technical talents and R&D teams in filtration and separation, invested heavily in purchasing automatic welding robots, CNC machining centers, 500-ton hydraulic presses and other equipment, and achieved mold-based production.
With an annual sales volume of 235 million RMB, the company has 185 employees, covering an area of nearly 20,000 square meters, including a workshop area of over 15,000 square meters. It owns more than 100 sets of various processing and testing equipment, such as large vertical lathes, hydraulic presses, turning-milling-planing machines, boring machines, plate shears, bending machines, X-ray flaw detectors, display-type universal material testing machines, universal plate bending machines, CNC laser cutting machines, microcomputer vibration aging devices, and dynamic balancing machines. The company offers a complete range of centrifuges, mainly including top discharge models (PSB, PSD), automatic bottom discharge scraper models (PGZ, LGZ, PAUT, PGD), and horizontal spiral discharge models (LW, LLW, LLWZ), etc.
·Flat vertical scraper automatic discharge centrifuge
·Flat-plate scraper bag shaking automatic discharge centrifuge
·Flat plate discharge centrifuge
·Horizontal screw concentration and filtration centrifuge
·Horizontal screw discharge sedimentation centrifuge
PGD Operating principle
The material to be separated is added into the high-speed rotating centrifuge drum through the feed tube. Under the action of centrifugal field, the material is filtered through the filter cloth, the liquid phase is discharged through the outlet tube, and the solid phase is intercepted in the drum. When the material is full, stop feeding, wash the cake, and filter out the washing liquid. The centrifuge continued to rotate and the cake was dried. After the filter cake meets the separation requirement, the centrifuge reduces the speed and scrapes the filter cake down from the bottom and discharges it out of the machine through the scraper. The centrifuge reduces the speed again, and the pneumatic bag shaking device moves up and down to shake off the residual filter cake, so as to realize the complete removal of the filter cake, thereby realizing the regeneration of the filter cloth.
PGD Main Features
PGD Optional configurations
| items | PGD800 | PGD1000 | PGD1250 | PGD1600 | PGD1800 |
|---|---|---|---|---|---|
| Basket Dia (mm) | 800 | 1000 | 1250 | 1600 | 1800 |
| Basket volume (L) | 100 | 180 | 400 | 800 | 1250 |
| Max. load (kg) | 135 | 230 | 500 | 1000 | 1500 |
| Max. Relating speed (r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 850 | 800 |
| Centrifuge force | 645/1008 | 677/805 | 700/1008 | 647 | 645 |
| Motor (kw) | 7.5/11 | 15 | 22/30 | 37 | 55 |
| Dimension (L×W×H) (mm) | 2050*1250*2000 |
2350*1450*2350 |
2550*1800*2550 |
3200*2400*3000 |
3500*2500*3300 |
| Weight (kg) | 2000 | 4000 | 6000 | 12000 | 15000 |
