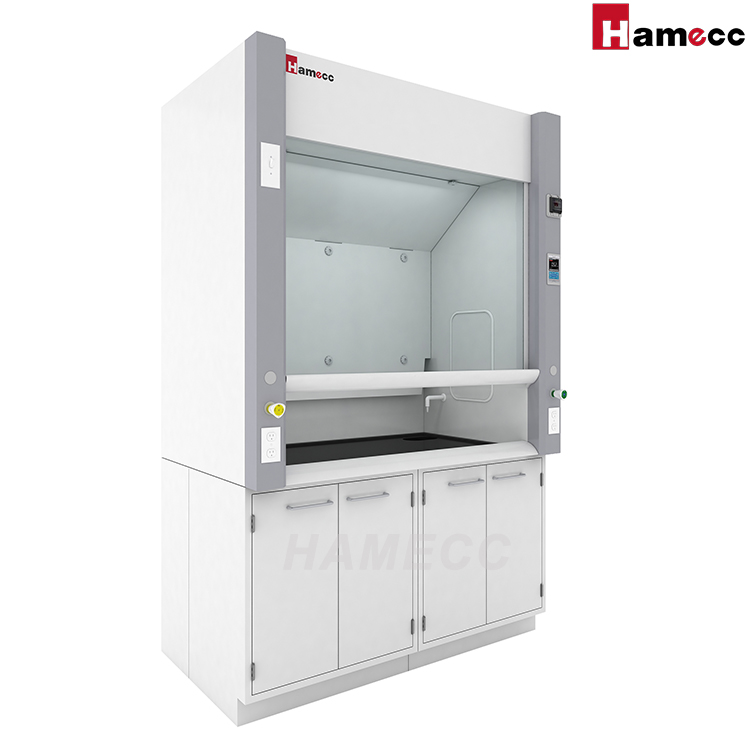

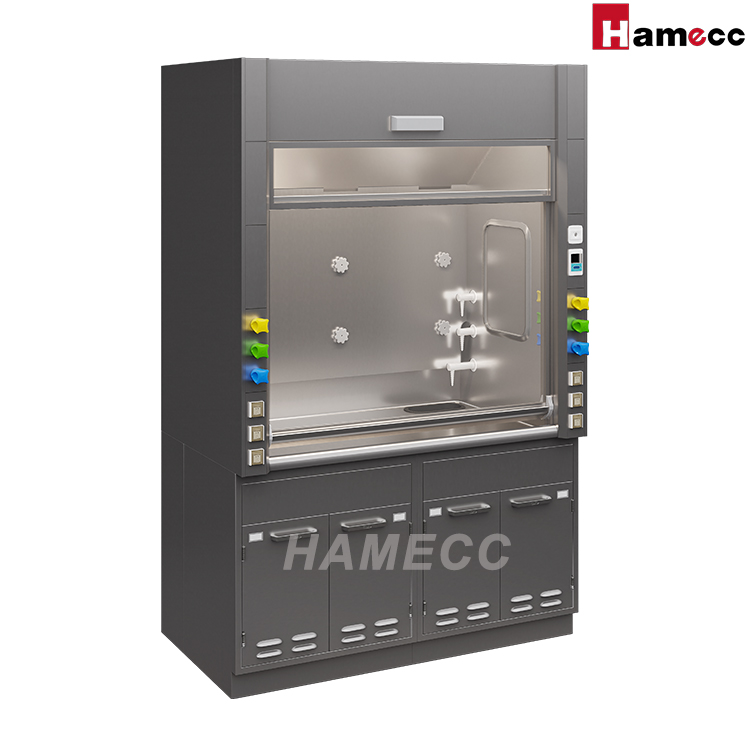

The Laboratory Fume Hood is engineered to provide reliable containment and extraction of hazardous fumes, vapors, and airborne contaminants generated during laboratory operations. Designed in accordance with ASHRAE 110 testing requirements, it features an optimized airflow distribution system, full-surface exhaust extraction, and ergonomic operation to help protect laboratory personnel while maintaining a safe working environment. Suitable for chemical laboratories, pharmaceutical facilities, research institutes, universities, and industrial quality control laboratories.
Название компании :
HAMECC (Shanghai) Lab Solutions Co., Ltd.Brand :
HAMECCModel :
[SK SERIES] SK-W1200/SK-W1500/SK-W1800Width [mm] :
1200/1500/1800Depth [mm] :
880Height [mm] :
2350Inner width [mm] :
956/1256/1556Inner Depth [mm] :
740Inner Height [mm] :
1180Extract manifold Diameter [mm] :
250/250/315Lighting :
LEDx2/LEDx2/LEDx2
Категории продуктов
Компания HAMECC (Шанхай) Lab Solutions Co., Ltd., являясь ведущим поставщиком решений в области лабораторной мебели, представляет собой инновационное предприятие, объединяющее исследования и разработки, производство и продажи. HAMECC доверяет производство в Китае предоставление профессиональных решений для лабораторных систем исследовательским институтам, университетам и корпоративным лабораториям по всему миру.
Производственная база HAMECC занимает площадь 20 000 м², а производственные цеха — около 15 000 м².
Компания HAMECC предоставляет комплексные решения «под ключ» по оснащению лабораторий мебелью для клиентов по всему миру, которые строят новые лаборатории или модернизируют существующие. HAMECC предлагает полный спектр систем лабораторной мебели для клиентов по всему миру, включая столешницы, лабораторные верстаки, вытяжные шкафы, системы вентиляции, сервисные приспособления и лабораторное оборудование. Продукция HAMECC сертифицирована по стандартам SEFA8M и ASHARE110.
A Laboratory Fume Hood is an essential safety enclosure designed to capture, contain, and exhaust hazardous fumes, vapors, aerosols, and airborne particles generated during laboratory procedures. It helps minimize operator exposure while maintaining a clean and compliant laboratory environment.
Designed for modern laboratories, this fume hood combines optimized airflow management, durable construction, and user-friendly operation. Its airflow system has been developed to provide efficient contaminant capture while maximizing the usable workspace for routine laboratory applications.
The laboratory fume hood continuously draws room air through the front sash opening into the working chamber. Hazardous fumes, vapors, and airborne contaminants generated during laboratory operations are captured by the controlled airflow and directed through the exhaust manifold before being discharged via the laboratory ventilation system.
Its optimized airflow distribution minimizes turbulence and improves contaminant containment, helping protect laboratory personnel while maintaining stable airflow throughout the working area.
The integrated airflow distribution system and full-surface extraction improve contaminant capture while maintaining consistent airflow across the working chamber.
Designed to meet ASHRAE 110 performance requirements, the fume hood helps reduce operator exposure to hazardous fumes during routine laboratory procedures.
Constructed from epoxy powder-coated cold rolled steel for excellent corrosion resistance and long service life.
Large inspection panels, hollow service columns, and modular construction simplify routine inspection and maintenance.
A lightweight aluminum sash frame, smooth timing belt mechanism, and ergonomic handle improve operator comfort during daily use.
Supports multiple worktop materials, utility services, under-cabinet options, and laboratory accessories to accommodate different laboratory requirements.

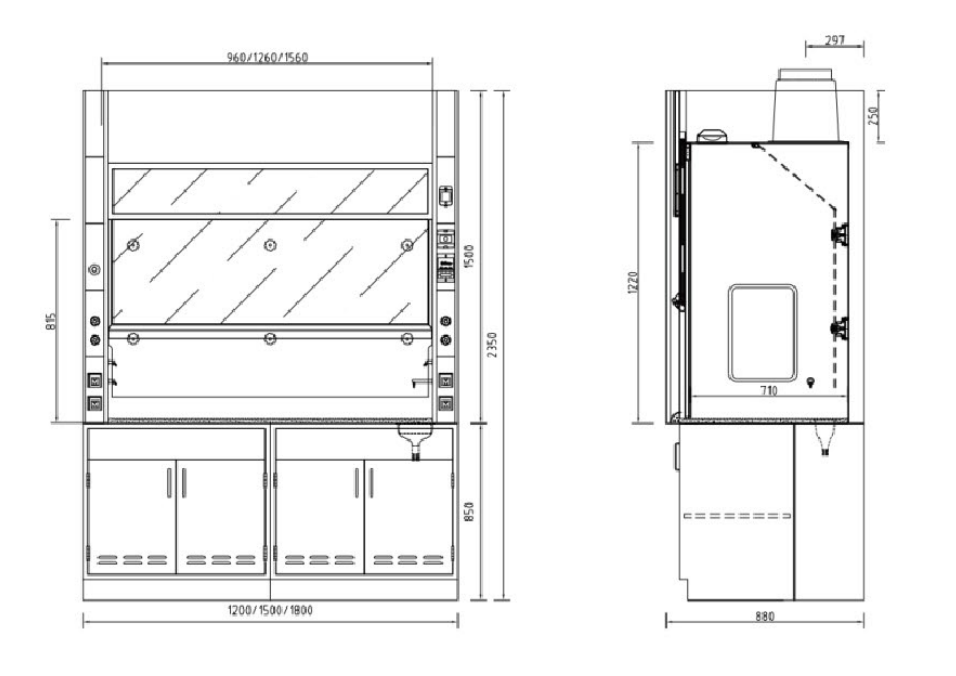

| Item | Specification |
|---|---|
| Product Type | Laboratory Fume Hood |
| Models | SK-W1200 / SK-W1500 / SK-W1800 |
| Width (mm) | 1200 / 1500 / 1800 |
| Depth (mm) | 880 |
| Height (mm) | 2350 |
| Inner Width (mm) | 956 / 1256 / 1556 |
| Inner Depth (mm) | 740 |
| Inner Height (mm) | 1180 |
| Exhaust Manifold Diameter (mm) | 250 / 250 / 315 |
| Lighting | LED ×2 |
| Component | Material |
|---|---|
| Main Structure | Cold Rolled Steel with Epoxy Powder Coating |
| Worktop Options | Ceramic, Epoxy Resin, Phenolic Resin, Trespa |
| Interior Lining | Compact Panel, Phenolic Resin, Fiberglass |
| Model | Width |
|---|---|
| SK-W1200 | 1200 mm |
| SK-W1500 | 1500 mm |
| SK-W1800 | 1800 mm |
Integration Solution
| Electrical Supply | Power outlets on the exterior in the service panel |
| Water&Gas supply | Optional: air valve, water valve, PP Cup sink |
| Under Cabinet | Standard steel cabinet, safety cabinet, acid cabinet,etc. |
