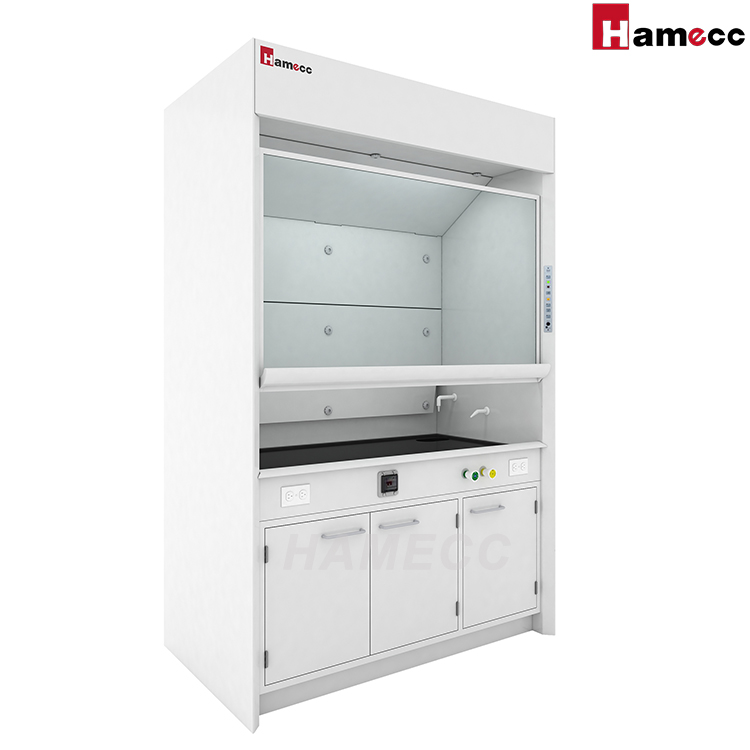

The Fume hood SR series is designed to provide maximum ergonomics and an expanded internal workspace for laboratory applications. Its optimized chamber design minimizes intake air turbulence while offering increased working capacity for larger laboratory equipment. Featuring full-surface exhaust extraction, durable construction, and flexible utility integration, the SR Series is suitable for a wide range of laboratory environments.
Название компании :
HAMECC (Shanghai) Lab Solutions Co., Ltd.Brand :
HAMECCLighting :
LEDx2/LEDx2/LEDx2Extract manifold Diameter [mm] :
250/250/315Inner Height [mm] :
1470Inner width [mm] :
1156/1456/1756Height [mm] :
2700Depth [mm] :
900Width [mm] :
1200/1500/1800Model :
[SR SERIES] SR-W1200/SR-W1500/SR-W1800
Категории продуктов
Компания HAMECC (Шанхай) Lab Solutions Co., Ltd., являясь ведущим поставщиком решений в области лабораторной мебели, представляет собой инновационное предприятие, объединяющее исследования и разработки, производство и продажи. HAMECC доверяет производство в Китае предоставление профессиональных решений для лабораторных систем исследовательским институтам, университетам и корпоративным лабораториям по всему миру.
Производственная база HAMECC занимает площадь 20 000 м², а производственные цеха — около 15 000 м².
Компания HAMECC предоставляет комплексные решения «под ключ» по оснащению лабораторий мебелью для клиентов по всему миру, которые строят новые лаборатории или модернизируют существующие. HAMECC предлагает полный спектр систем лабораторной мебели для клиентов по всему миру, включая столешницы, лабораторные верстаки, вытяжные шкафы, системы вентиляции, сервисные приспособления и лабораторное оборудование. Продукция HAMECC сертифицирована по стандартам SEFA8M и ASHARE110.
The FUME HOOD SR SERIES is engineered to maximize operator comfort and laboratory efficiency through an enlarged internal workspace and ergonomic design. Compared with conventional laboratory fume hoods, the SR Series provides a larger access area and approximately 10% higher internal workspace, making it well suited for handling taller and wider experimental equipment.
Its specially designed airflow structure helps reduce turbulence in the intake air, while the full-surface exhaust system enhances fume extraction across the worktop. Combined with durable materials and multiple configuration options, the SR Series provides a practical solution for modern laboratory ventilation requirements.
The internal workspace is approximately 10% higher, providing additional space for tall or wide laboratory equipment.
The specially designed chamber geometry minimizes intake air turbulence to improve airflow performance.
The ergonomic sash handle, lightweight aluminum sash frame, and smooth timing belt mechanism provide comfortable daily operation.
The increased height of the gas collecting hood contributes to more effective exhaust extraction.
Supports multiple worktop materials, under-cabinet options, utility connections, and laboratory accessories.
| Item | Specification |
|---|---|
| Product Series | SR SERIES |
| Models | SR-W1200 / SR-W1500 / SR-W1800 |
| Width (mm) | 1200 / 1500 / 1800 |
| Depth (mm) | 900 |
| Height (mm) | 2700 |
| Inner Width (mm) | 1156 / 1456 / 1756 |
| Inner Height (mm) | 1470 |
| Extract Manifold Diameter (mm) | 250 / 250 / 315 |
| Lighting | LED ×2 / LED ×2 / LED ×2 |
| Component | Material |
|---|---|
| Main Structure | Cold Rolled Steel with Epoxy Powder Coating |
| Worktop | Ceramic, Epoxy Resin, Phenolic Resin, Trespa |
| Lining | Compact Panel, Phenolic Resin, Ceramic, Fiberglass |
| Item | Configuration |
|---|---|
| Electrical Supply | Power outlets on the exterior in the service panel |
| Water & Gas Supply | Optional air valve, water valve, PP cup sink |
| Under Cabinet | Standard steel cabinet, safety cabinet, acid cabinet, etc. |
| Model | Width |
|---|---|
| SR-W1200 | 1200 mm |
| SR-W1500 | 1500 mm |
| SR-W1800 | 1800 mm |
