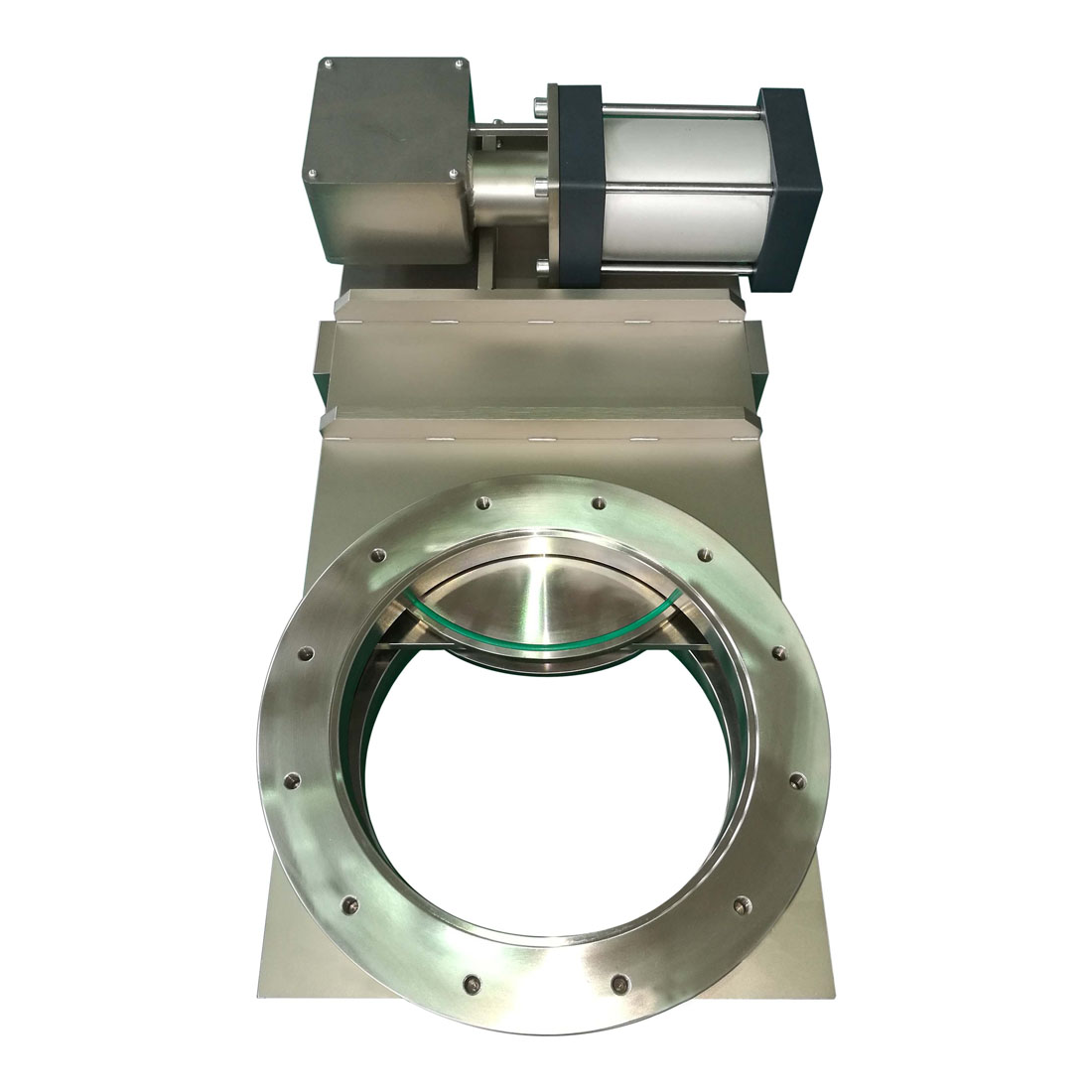

V Gate Vacuum Valve: Compact, Long-Lasting Solution for High-Vacuum Pipeline Control

AFAPA’s Vacuum Accessories portfolio delivers robust, precision-built components for industrial vacuum systems, and its V Gate Vacuum Valve stands out as a high-reliability solution for precise vacuum isolation and control across a wide range of industrial scenarios.

Engineered for space-constrained vacuum setups, the valve features an ultra-short overall footprint that saves 1/3 of installation space compared with conventional gate valves, making it an optimal choice for compact vacuum line layouts and equipment integration. Its valve body adopts a fully internal welding process, which minimizes outgassing and creates a smooth, easy-to-clean internal cavity, meeting the high cleanliness requirements of semiconductor, biopharmaceutical and precision research applications.

In terms of sealing performance, the valve achieves an ultra-low leakage rate of <1×10⁻⁹ mbar·l/s and operates stably across a vacuum range from 1000 mbar down to 1×10⁻⁹ mbar, covering rough, medium, high and ultra-high vacuum working conditions. It is designed with multiple sealing mechanisms, and the actuator adopts a rotary dynamic seal with FKM O-rings to ensure long-term sealing reliability.

Built for heavy-duty continuous operation, the valve features a low-friction design that extends the maintenance cycle to over 300,000 switching cycles, significantly reducing long-term operation and maintenance costs. It delivers smooth, low-vibration switching performance to avoid disrupting sensitive vacuum processes.

The full product line covers six standard models — GV100, GV160, GV200, GV250, GV320 and GV400 — with nominal diameters from 100mm to 400mm and standard ISO flange connections for seamless compatibility with mainstream vacuum systems. It is widely deployed in vacuum coating, metallurgy, chemical processing and laboratory research fields.

Contact our technical team today to share your application requirements and request a detailed product specification sheet and customized quotation.
